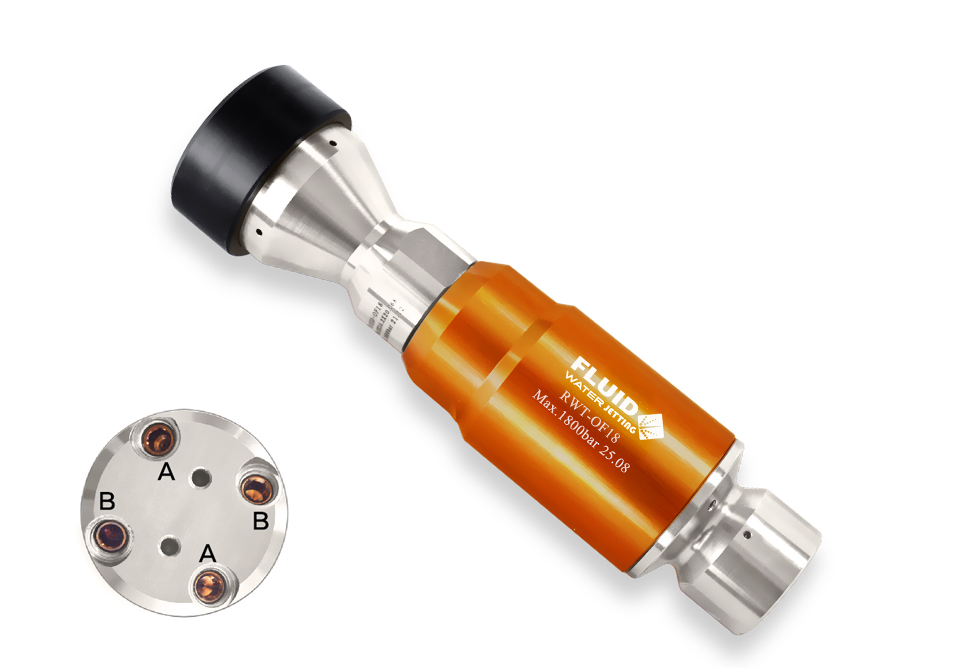

RWT-OF18
Product parameters

FEATURES:

■ Magnetic speed control, no need of regular maintenance.
■Easy to change seal parts.
■Two jets ideal for removing thick deposits, four jets ideal for faster removal of thin coatings/scales.


SPECIFICATIONS

Max.Operating pressure:

1800bar

Flow range:

15~38 l/min

Rotation Speed:

500~2500 rpm

Diameter:

￠49 mm

Total length:

200 mm

Approx. weight:

1.52 kg

Connection thread:

1-1/8-12 UNF Female seal with 60-degree cone or custom-made adapter provided

Sapphire nozzle:

4*M10*1.5 ( or 2 sapphire nozzles + 2 plugs )



Nozzle Size

mm*

Min. Pressure

bar

Max. Pressure

bar


Flow Range

l/min

￠0.6*2（A）+￠0.6*2（B）

800

1600

19~27

￠0.7*2（A）+￠0.7*2（B）

600

1400

26~34

￠0.8*2（A）+￠0.8*2（B）

500

1000

27~38

￠0.8*2（A）+2 plugs(B)

800

1800

17~25

￠0.9*2（A）+2 plugs(B)

650

1500

19~29

￠1.0*2（A）+2 plugs(B)

600

1200

23~32

￠1.1*2（A）+2 plugs(B)

500

1000

25~36

￠1.2*2（A）+2 plugs(B)

400

800

27~38


(A) means at 20°jet angle; (B) means at 15°jet angle;


Note: When manually operating high pressure guns and lances, the reaction force

on the axis  should not exceed 250 N.  A shoulder stock is required if  the reaction

force exceeds 150 N.
