RWT-FC/SR88-20M*
Product parameters

ADJUSTABLE ROTATION SPEED


Technical Specification:

Max. Operating pressure：

2000 bar

Max. Flow rate：

117 l/min

Rotation speed：

approx. 200~1500rpm

Max. Outer diameter：

ø88mm

Connection thread：

1-1/8-12 UNF Female or custom-made adapter provided

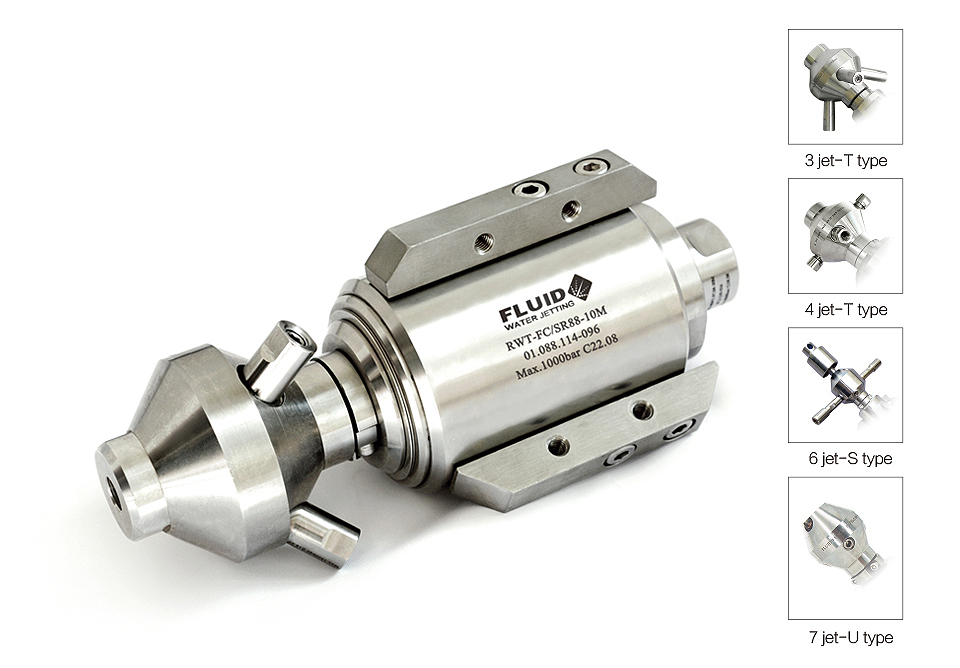

RWT-FC/SR88-20M3

With three M10*1.5 sapphire nozzles screwed in nozzle extensions "T" and  back jets.


RWT-FC/SR88-20M4

With four M10*1.5 sapphire nozzles screwed in nozzle extensions "T" Two at 90 degrees ,two back jets.


RWT-FC/SR88-20M6

With total six M10*1.5 sapphire nozzles screwed in nozzle head or nozzles extensions "S". Two forward jets, two at 90 degrees, two back jets.


RWT-FC/SR88-20M7

With total seven sapphire nozzles screwed in nozzle head Three 1/4-28 nozzles forward jets, two M10*1.5 nozzles at 90 degrees, two M10*1.5 nozzles back jets.
