FK-S SERIES
Product parameters




FK-S SERIES


FEATURES:
□ Magnetic rotation speed control will reduce wear and gives better jetting impact.
□ Three standard head configuration (Not incl. S series)


SERIES/TYPES AND SPECIFICATIONS:

SERIES

TYPES

Max. pressure
BAR

Max. flow rate
l/min

Diameter
ømm

Length
L=mm

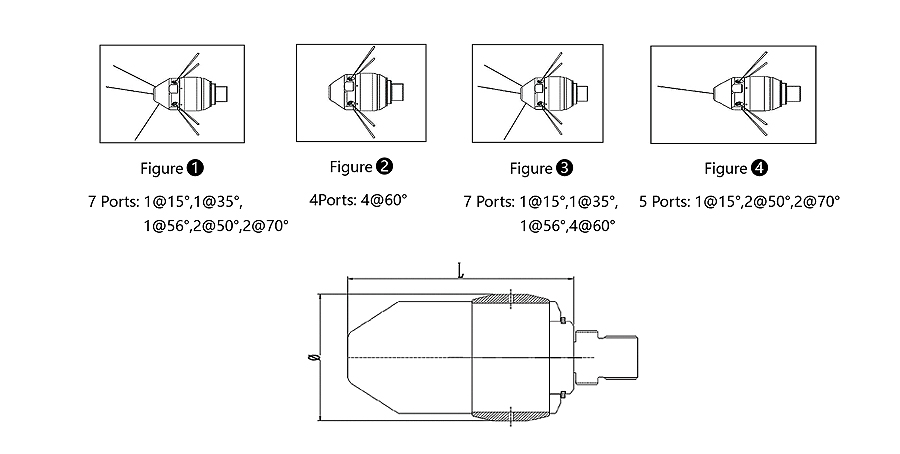

Figure

Inlet  Connection


S

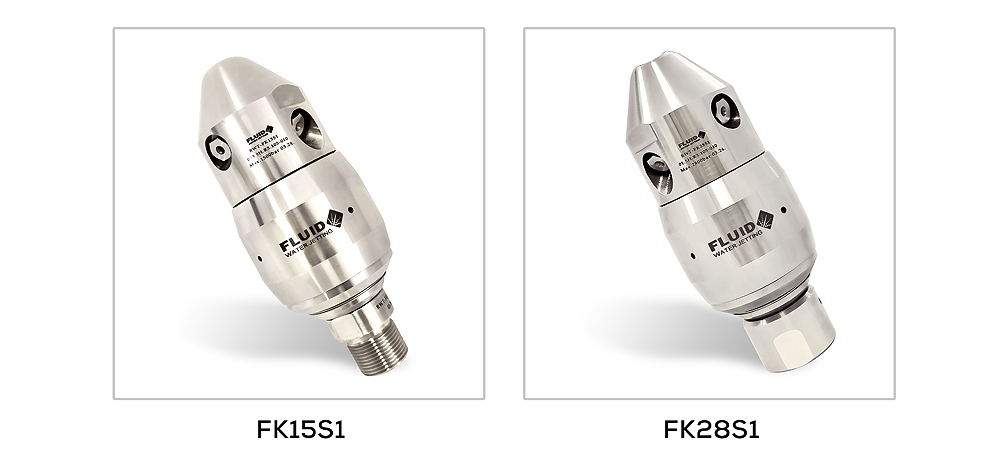

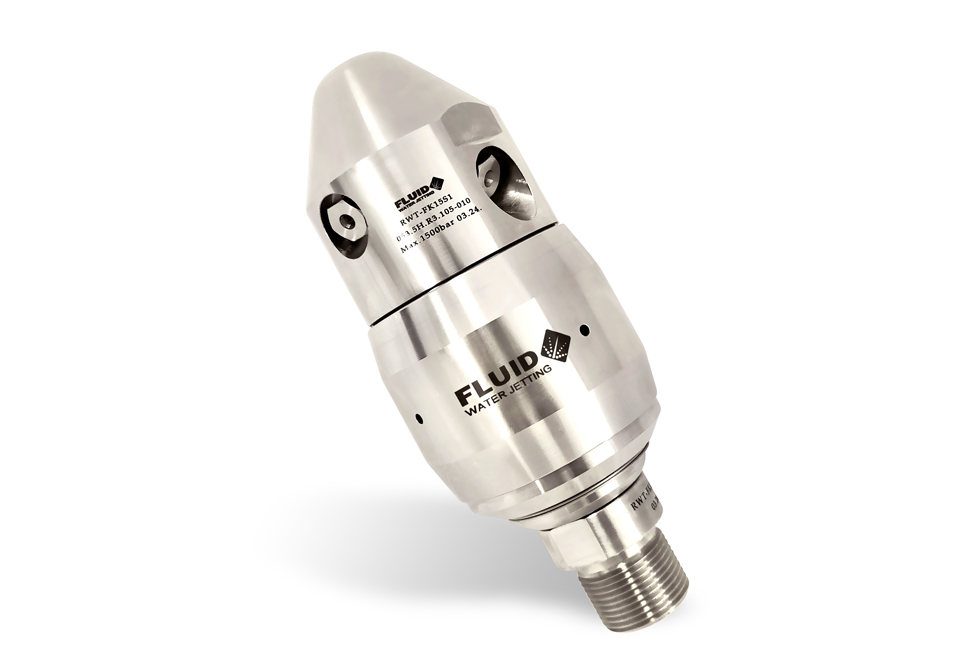

FK-15S1

1500

58

ø60

120

❹

M24*1.5 seal with 24-degree cone

FK-28S1

2800

42

ø60

120

❹

1-1/8-12 UNF female seal with a 60 degree cone
