FV1600BD(Dump Style)
Product parameters

Dump style foot valves allow the operator to have complete control of the pressure at all times. Ideal for a variety of waterblast tube cleaning applications.


FEATURES:

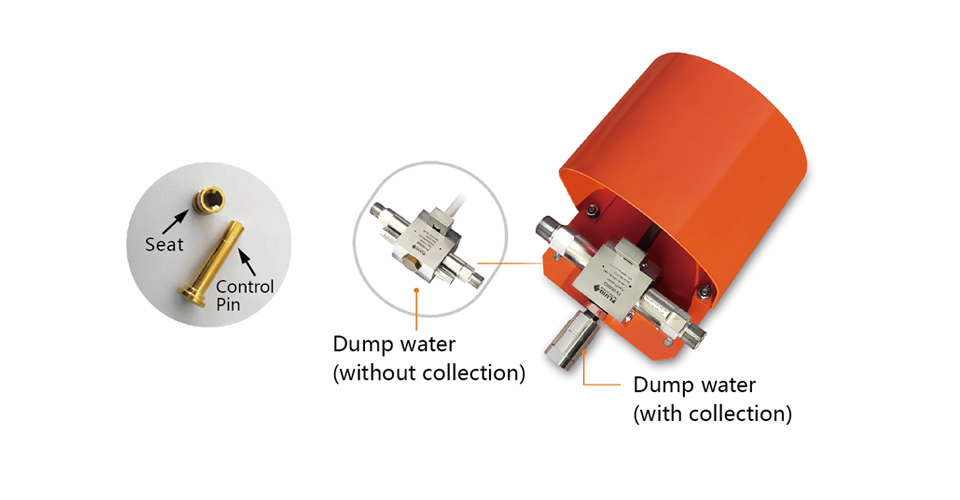

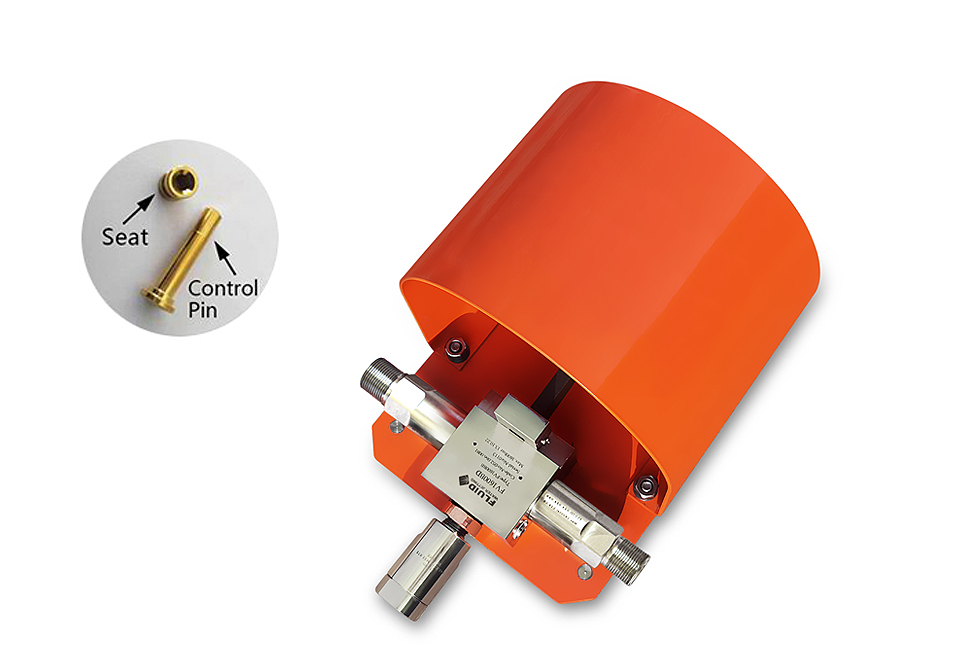

Cartridge is specially designed to replace the worn-out parts including control pin and seat alone. No need to replace the full cartridge and save money.

■ available with diffuser to route dump water for collection.


SPECIFICATIONS

Max. Operating pressure

1600 bar

Max. Flow rate

80 l/min

Weight

approx. 14 kg

Connection thread

M24*1.5 male with 24-degree cone
angle on both sides or custom-made
