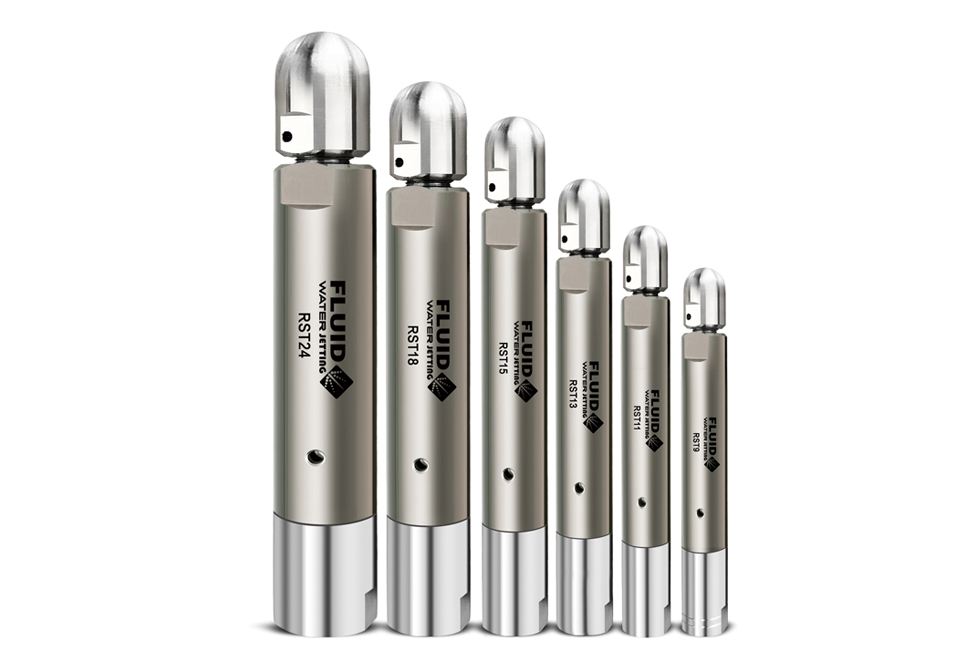

NEW RST TUBE CLEANING NOZZLES
Product parameters

NEW RST TUBE CLEANING NOZZLES (Max.1500bar)

RST9/11/13/15/18/24 ( Long life time )


SPECIFICATIONS


Body Type

Connecting
Thread

Flow Range

External
Diameter

Suitable i/d
range of tubes


RST9

1/4-28 LH/RH

M7

1/16-27 NPT (Max.1035bar)


8~30 l/min


9.5mm


12~16mm



RST11

1/428 LH/RH

M7

1/16-27 NPT (Max.1035bar)

M8X1

M8



10~36 l/min



11mm



14~22mm




RST13

1/4-28 LH/RH

M8X1

M8

3/8-24 LH/RH

1/8 BSPP

M10X1

1/8 NPT (Max.1035bar)




11~44 I/min




13mm




15~25mm


RST15

3/8-24 LH/RH

1/8 BSPP

M10X1

1/8 NPT (Max.1035bar)


11~44 I/min


15mm


17~28mm


RST18

M10X1

1/4 BSPP

1/4 NPT (Max.1035bar)

9/16-18 LH/RH


13~65 l/min


18mm


22~33mm



RST24

M10X1

1/4 NPT (Max.1035bar)

3/8 NPT (Max.1035bar)

3/8-24 LH

9/16-18 LH/RH



13~65 l/min



24mm



28~50mm
