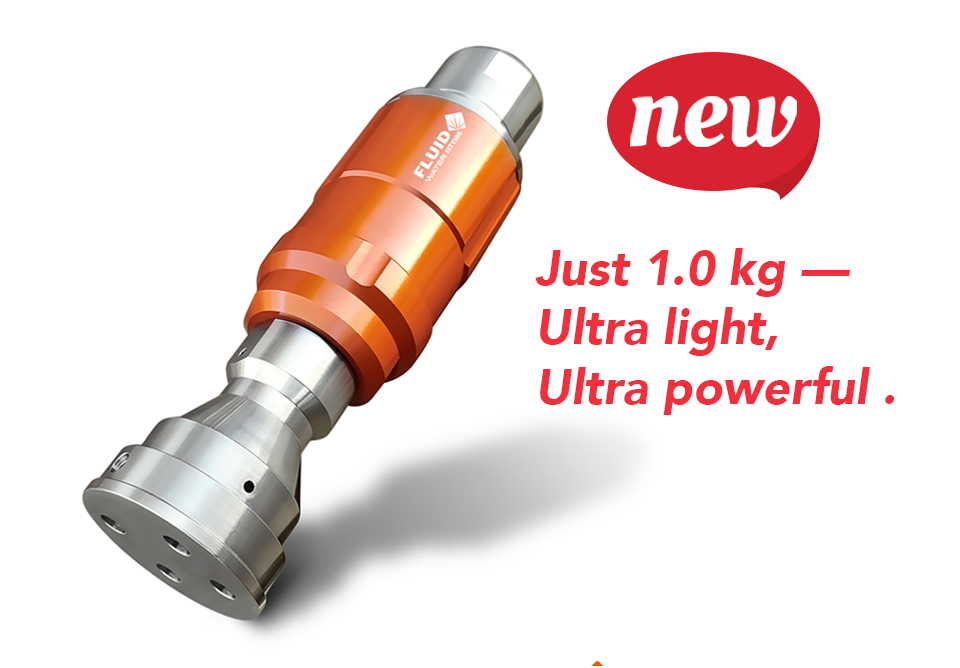

RWT-OF28T (HP SEAL)
Product parameters

RWT-OF28T (HP SEAL)


FEATURES:

■ Magnetic speed control, no need of regular maintenance.

■ Easy to change seal parts.

■ Just 1.0 kg — Ultra light, Ultra powerful .
■ Two jets ideal for removing thick deposits, four jets ideal for faster removal of thin coatings/scales.


SPECIFICATIONS


Max.Operating pressure:

2800bar

Flow range:

11~38 l/min

Rotation Speed:

500~2500 rpm

Diameter:

￠54 mm

Total length:

178 mm

Approx. weight:

1.0 kg

Connection thread:

1-1/8-12 UNF Female

Sapphire nozzle:

4*M10*1.5

Or 2 sapphire nozzles + 2 plugs


Nozzle Size

mm*

Min. Pressure

bar

Max. Pressure

bar

Flow Range

l/min

￠0.40 X4

1550

2800

12~14

￠0.45 X4

1200

2800

13~20

￠0.50 X4

1000

2200

15~22

￠0.55 X4

830

1800

16~24

￠0.8*2+2 plugs

780

1700

17~25

￠0.9*2+2 plugs

620

1350

19~28

￠1.0*2+2 plugs

500

1100

21~31

￠1.1*2+2 plugs

410

900

23~34

￠1.2*2+2 plugs

350

750

25~37


Note: When manually operating high pressure guns and lances, the reaction force

on the  axis  should not exceed 250 N.  A shoulder stock is required if the reaction

force exceeds 150 N.
