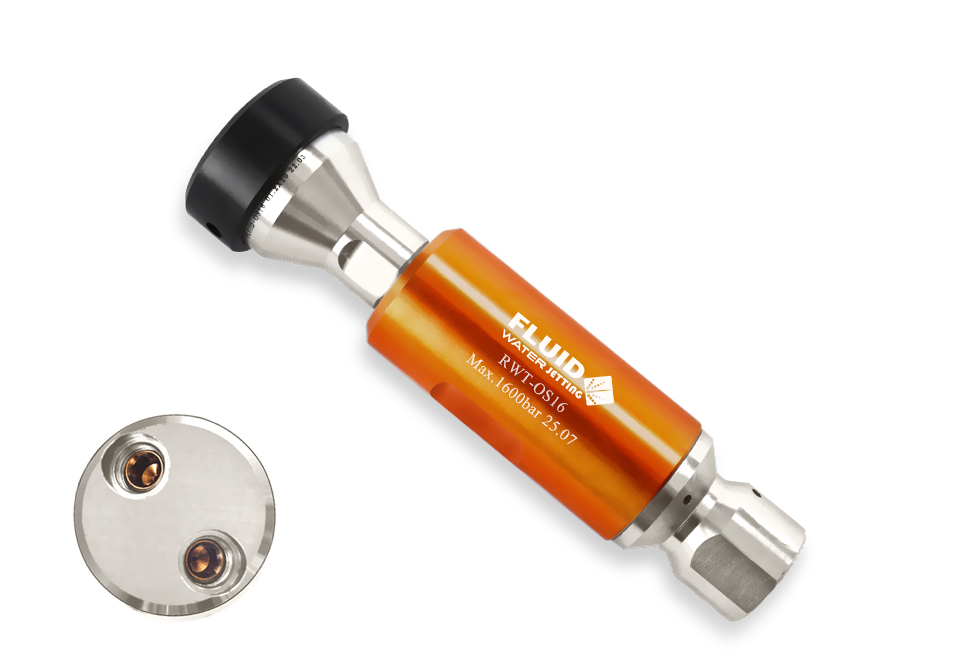

RWT-OS16
Product parameters


FEATURES:

■ Magnetic speed control, no need of regular maintenance.
■ Easy to change seal parts.

■ Light weight, easy to operate.


SPECIFICATIONS

Max. operating pressure：

      1600bar

     Flow range：

      10~30 l/min

     Rotation Speed：

      500~2500 rpm

     Diameter：

￠37 mm

     Total length:

      168mm

     Approx. weight:

      0.78 kg

     Connection thread：

M20*1.5 female or custom-made adapter provided

     Sapphire nozzle：

      2* M10*1.5


Nozzle Size

mm*

Min. Pressure

bar*

Max. Pressure

bar*

Flow Range

l/min*

￠0.6*2

800

1600

10~14

￠0.7*2

600

1500

11~18

￠0.8*2

500

1400

13~22

￠0.9*2

400

1000

15~24

￠1.0*2

300

800

16~27

￠1.1*2

250

600

18~28

￠1.2*2

200

500

19~30


Note: When manually operating high pressure guns and lances, the reaction force

on  the  axis should not exceed 250 N. A shoulder stock is required if  the reaction

force exceeds 150 N.
